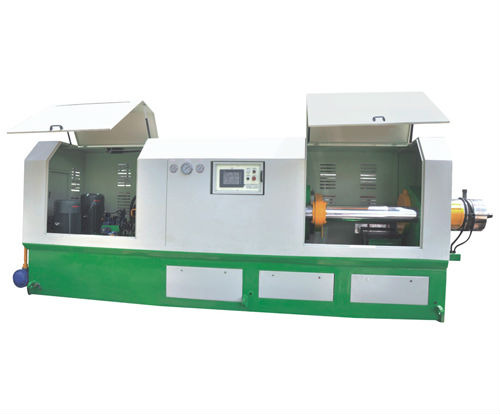

Continuous Plant Lead Pipe Extrusion Press Machine

this machine is apply to pure lead ,and lead alloy pipe extrudering .

1)Main oil vat :adopt plunger type cylinder (Germany Technology) Vat diameter 450mm,rated working pressure 21Mpa ,Hydraulic system adopt steady speed structure to assure the extruding stability of metal&flux flow

2)inside oil vat :diameter 120mm,rated working pressure 21Mpa, with the advantage of quick oil injecting to shorten the idle running time and enhance the productivity.

3) Hydraulic variable pump&hydraulic plunger pump one set

4) hydraulic valves :8 pcs

5) speed contrl valve: Japan brand

6)Temperature control:adopt Japan RKC termperature control system

7) flux tank : adopt stainless steel ,oil heating to enable the flux temperature invariableness ,with flux status-checking window to assure it will be always in best status

8)material feeding :adopt hydraulic photo electricity double assurance control ,fully automatic control for the feeding process

9) guarantee :one year free maintenance 9man-made damage not included)
